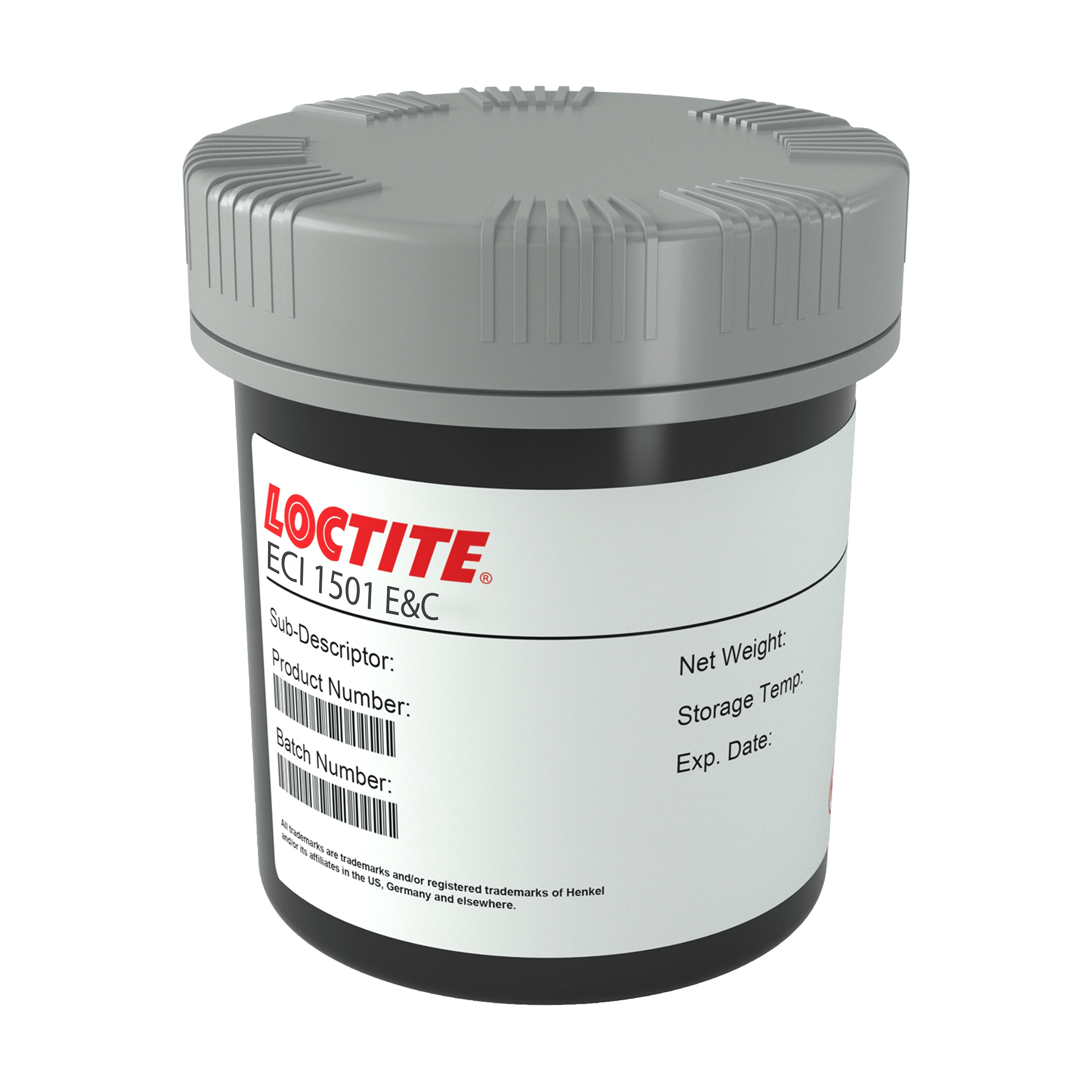

Loctite ECI 1501

LOCTITE® ECI 1501 is a thermoforming, electrically conductive ink specially formulated for use in electronic circuit assembly applications.

To see the prices, please log in

SKU 2499146O

Packaging1,00 kg
Supplier Henkel
RangeHenkel Electronic Materials, Conductive ink
Category
Application methodsScreen printing

LOCTITE ECI 1501 is a formable, conductive silver ink with a good elongation performance. It is often used to print formable circuits to create 2.5 to 3D shaped circuits and in-molded electronic (IME) solutions. LOCTITE ECI 1501 has a possible elongation to break of ±50%. It is suitable for screen printing and compatible with polyester, polycarbonate, and some TPU foils.

Weight 1,12 kg
Dimensions 11,00 × 11,00 × 11,00 cm
  • Thermoformable silver ink
  • Sheet Resistance < 0.025 Ohm/sq/25 µm
  • Curing temperature: 120°C
  • Key substrates: PET, PC, TPU
Weight 1,12 kg
Dimensions 11,00 × 11,00 × 11,00 cm
